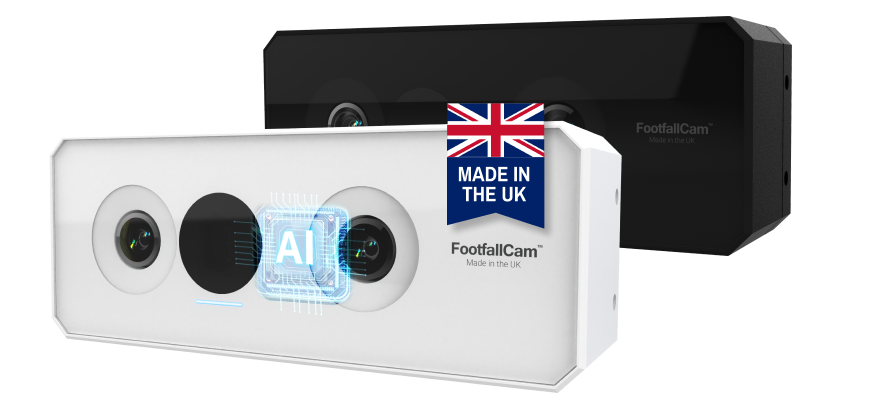

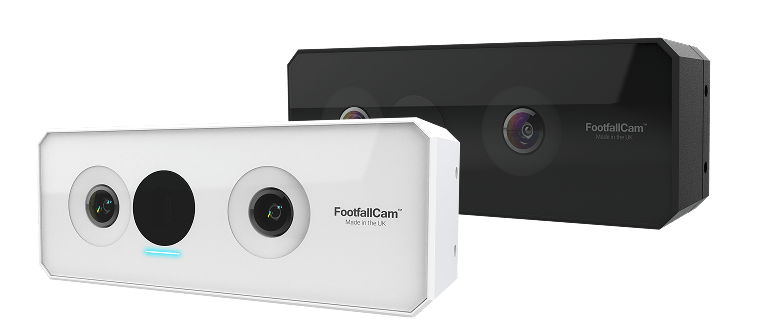

FootfallCam 3D Pro2™

3D Stereoscopic Vision People Counter

  • AI Powered 3D Stereo Vision People Counting
  • Superior Processing power- improved 3D counting accuracy
  • Low-light/ Night mode counting
  • Splash-proof
  • FootfallCam In-House Manufactured Product: Made in the UK

About this item

FootfallCam 3D Pro2™ is specially designed to support low ceiling height (as low as 2.1m) counting. Embedded with a powerful 1.2GHz Quadcore processor, it is packed with feature upgrades while maintaining performances of its predecessors. Specifically designed to run complex video processing algorithms, the GPU runs our AI-based algorithms which utilizes depth, colour and texture pattern to identify a person, producing superior accuracy compared to using colour pattern alone. The built-in sensor further improves accuracy in low-light, indoors and high noise environments. Delivered in Splash proof case, the overall form factor is more compact and inconspicuous than ever.

Description

Highest Accuracy

3D Stereovision Video Counting with 25 FPS, 8MP | AI Analytics On Object Classification

Combining 3D stereoscopic image processing and AI video analytics together with advanced tracking algorithms, FootfallCam 3D Pro2™ People Counter is optimised to achieve up to 99.5% accuracy, even in environmentally challenging conditions. Embedded with a powerful 1.2GHz Quadcore processor, it is designed specifically to run complex video processing and AI-based algorithms with superior processing power.

Object Classifications

Wheelchair | Trolley | Kids | Gender | Staff Exclusion

Utilising the 3D depth map captured by dual lens, it allows the FootfallCam 3D Pro2™ people counter to determine the height and size of the moving objects, and distinguish the objects from the people using AI algorithms. This helps to exclude the object, such as wheelchairs, trolleys, carts and strollers from the counting.

play-sharp-fill

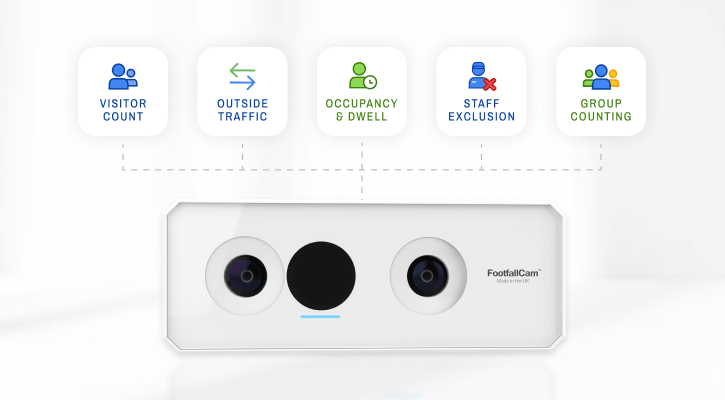

One Device, Multiple Applications

Offers deployment flexibility for both short term and long term use

Supports multiple counting functions in a single device, in which users can use interchangeably or relocate to use for other functions.

In/Out counting at entrances – Count the number of visitors entering and      exiting the stores

Multiple counting lines – Count the number of visitors entering different       areas

Queue counting – Measure the queue length, waiting time and serving            time

Heatmap – Track the visitor engagement at different zones of interest

Wi-Fi Counting

Returning Customers | Visit Duration | Outside Traffic

With the Wi-Fi capturing technology, the people counter is able to detect the number of smart devices within the range of Wi-Fi detection. With this, the people counter is capable of providing in depth Wi-Fi analytics and business metrics such as zone analytics, dwell time, passerbys, turn in rate, traffic flow, returning customers and cross shopping.

WifiCounting

Optimised for All Environments



Low Ceiling | Splash Proof | Counting under Low Light

FootfallCam 3D Pro2™ is designed to count accurately with highest precision, even under all extreme conditions. It supports most of the ceiling heights, as low as 2.1m to 4.5m. The built-in sensor further improves accuracy in low-light, indoors and high noise environments, even in complete darkness. Enclosed in splash proof casing, it is designed specifically to reduce the common issue of water damage due to unforeseen circumstances such as water leakage on the ceiling.

SuitableForAllEnvironments_WaterResistant1

Low Ceiling

2

Splash Proof

SuitableForAllEnvironments_WaterResistant2

Night Vision

Product Specification

3D_Pro2_Spec_lg

Technical Details

Tracking Technology

3D-Spacing Mapping Video Tracking Technology and AI Video Analytics.

Camera Lens Spec

2x5MP

Depth Field of View

160°

Illumination

Minimum 1 lux

Ideal Mounting Height

2.1 metres – 4.5 metres



Casing

Aluminum oxide alloy

Power Supply

Power Over Ethernet

Power Consumption

6W (max. 8W)

Wireless Connectivity

Supports a network of up to 250 IoT devices via RF

Downloads

FootfallCam 3D Pro2 Datasheet
 FootfallCam Product Catalogue
 FootfallCam 3D Pro2 Installation Guide PDF
